WinWing/WinCTRL URSA Minor 32 Throttle + 32 PAC Metal Configuration and Calibration Guide

Updated

This guide is intended to help with the calibration of the WinWing Ursa Minor 32 Throttle and 32 PAC Metal extension. If you are having issues with this guide, we recommend reaching out to WinWing support for further assistance.



  1. Open SimAppPro and select Ursa Minor 32 Throttle (and 32 PAC) in the device tab.

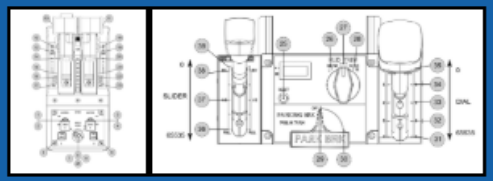

    Fig 1. Icon of Ursa minor 32 throttle + 32 PAC depiction, your app may only show the throttle if you do not have the 32 PAC extension.
  2. Test your buttons, ensuring all buttons and axis' work appropriately.

  3. Select the calibration tab, located in the upper left of SimAppPro.

    Fig 2. Calibration tab

  4. Follow the calibration process in this tab, in order as listed below. Pay extra attention to instructions for each calibration procedure; it will guide you through the entire process.

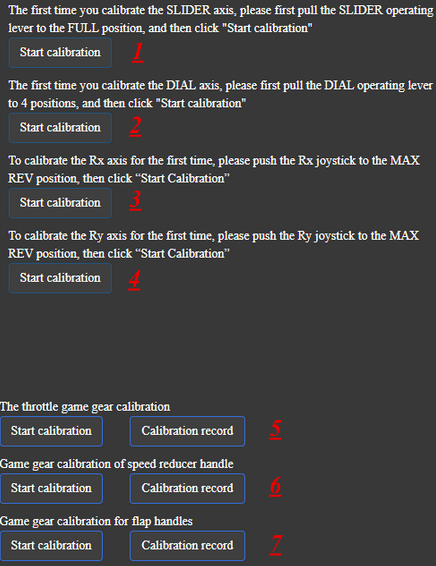

    Fig 3. Calibration order to be performed.
  5. Upon completion of the calibration process, open Microsoft Flight Simulator.
  6. Once MSFS has opened, go to settings in MSFS, and select the controls tab.

  7. Select the Ursa Minor 32 (and 32 PAC) on the device list.

    Fig 4. Device list location
  8. Bind all assignments using the process as listed below.
    1. Search for the assignment in the top tab

    2. Select the gear icon on the right side

      Fig 5. Setting icon for each assignment

    3. Select the slider for the correct assignment (You must select if the axis is inverted or not, following the table below).

      Fig 6. Where you can select the keys or axis to be assigned
    4. Go back and repeat the process for each assignment. Use the Table Below:
    5. Assignment Button or Axis Reverse
      Autothrottle disconnect 11 (right) or 10 (left) -
      Flap axis Slider Y NO
      Spoilers axis Slider X YES
      Rudder trim left 26 -
      Reset rudder trim 25 -
      Rudder trim right 28 -
      Disarm auto spoilers 39 (On Release) -
      Arm auto spoilers 39 (On Press) -
      Set engine master 1 1 -
      Set engine master 2 3 -
      Set engine crank mode 7 -
      Set engine ign/start mode 9 -
      Set engine norm mode 8 -
      Set engine 1 fuel valve 1 -
      Set engine 2 fuel valve 3 -
      Set starter 1 1 -
      Set starter 2 3 -
      Set parking brake 30 -
      Parking brake off 29 -
      Parking brake on 30 -
      Throttle 1 axis RAXIS X YES
      Throttle 2 axis RAXIS Y YES

  9. Save this configuration by clicking the gear icon next to Airplane Controls, and click Create.

    Fig 7. Profile management
  10. Upon selecting and assigning all keys and axis, and the profile has been saved, proceed to the MCDU Calibration process as listed here: Fenix A320 Flight Control Calibration
